A review of Permian to Jurassic magmatism along the Korean Peninsula and the Japanese Islands: Tectonic interpretations and a key for paleogeographic reconstructions

1. Introduction

The Korean Peninsula and the Japanese Islands occupy the eastern margin of the Asian continent. Opening of the East Sea (Japan Sea) in the Miocene (e.g., Otofuji, 1996 and references therein) separated the modern Japanese Islands from the Asian continent. Before the Miocene opening of the East Sea (Japan Sea), the Japanese Islands were formed along the eastern margin of the Asian continent. Revealing the tectonic linkages among the Asian continent, including the Korean Peninsula and the Japanese Islands, is extremely important to constrain the comprehensive evolutionary history of East Asia, especially during the Phanerozoic.

The tectonic correlations between the Korean Peninsula and the Japanese Islands have been debated for several decades by many authors (e.g., Otoh and Sasaki, 1998; Ishiwatari and Tsujimori, 2003; Oh, 2006); however, the validity of each model is still under debate. The basement rocks of the Korean Peninsula and the Japanese Islands are markedly different from each other. In particular, the Korean Peninsula mainly consists of continental affinity rock units that were formed since the Archean Eon, while the Japanese Islands contain continental- and/or island-arc affinity rock units that were mostly formed during the Phanerozoic Eon. Such differences cause limited occurrences of the correlatable rock units between them, which makes it difficult to obtain definitive correlations.

During the last several decades, a large amount of geochronological data has been produced due to the development of analytical techniques (equipment) such as thermal ionization mass spectrometry (TIMS), sensitive high-resolution ion microprobe (SHRIMP), and laser ablation inductively coupled plasma mass spectrometry (LA-ICP-MS). In addition, zircon U-Pb geochronology has become the most widely used tool for determining in situ ages with high precision (i.e., <±5%). Low- to medium-grade metamorphism does not reset zircon ages because of the high closure temperature of the zircon U-Pb system (>900℃; Cherniak and Watson, 2000). Therefore, zircon U-Pb ages obtained by the abovementioned equipment provide very important information regarding the crystallization age of zircons with high precision. However, some studies on the zircon U-Pb geochronology of the Korean Peninsula and the Japanese Islands have been published in local languages and are hardly accessible to the international community. From this point of view, it is necessary to review recent zircon U-Pb geochronological studies from the Korean Peninsula and the Japanese Islands written in English, Korean, and Japanese. In this review article, we review the ages of the Permian to Jurassic granitoids in the Korean Peninsula and the Japanese Islands, which could provide an important perspective to correlate the geology of Korea to that of Japan. Finally, we try to interpret the tectonic relationship between the igneous activities in the Korean Peninsula and the Japanese Islands during the Permian to Jurassic periods based on their spatiotemporal distribution from compiled zircon U-Pb ages in this review article.

2. General geology of the Korean Peninsula and the Japanese Islands

2.1 Korean Peninsula

The basement of the Korean Peninsula mainly consists of four Precambrian massifs: the Yeongnam, Gyeonggi, Nangrim, and Kwanmo Massifs from south to north (Fig. 1). These massifs under went polyphase tectono-thermal events during the Precambrian (e.g., Lee and Cho, 2012; Oh et al., 2018). Three fold-thrust Belts separate these Precambrian massifs: the Neoproterozoic-Paleozoic Ogcheon Belt between the Yeongnam and Gyeonggi Massifs, the Paleozoic Imjingang Belt between the Gyeonggi and Nangrim Massifs, and the Neoarchean-Paleoproterozoic Machollyong Belt between the Nangrim and Kwanmo Massifs (Fig. 1). Cretaceous sedimentary and volcanic sequences of the Gyeongsang Basin are developed in the southeastern part of the Korean Peninsula and overlay the Yeongnam Massif (Fig. 1). The Kanmon and Toyonishi Groups in the northwestern part of Southwest Japan share common lithological features with the Gyeongsang Basin sequences (Ishiga et al., 1997; Lee et al., 2018). In the northeasternmost part of the Korean Peninsula, the late Paleozoic-Triassic Tumangang Belt formed within the Kwanmo Massif (Fig. 1). The Tumangang Belt is considered to be a different unit from the Precambrian Massifs and experienced subduction and collision (Jon et al., 2009; Zhang et al., 2016).

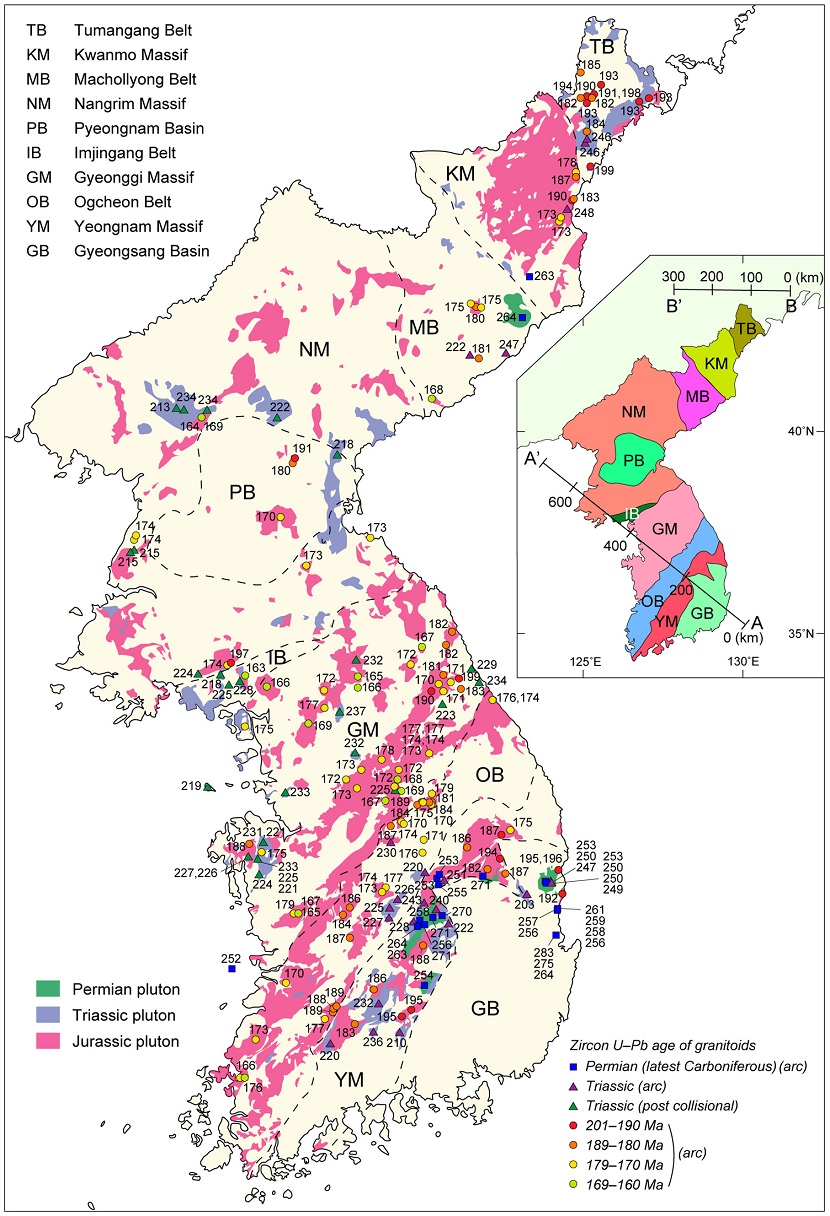

Fig. 1.

Distribution of the Permian to Jurassic plutons in the Korean Peninsula after Kim, S.W. et al. (2021). The SHRIMP, TIMS, and LA-ICP-MS zircon U-Pb ages, locations, and the (probable) tectonic setting of the Permian to Jurassic granitoids are shown on this map. Data are after Wu et al. (2007), Park et al. (2010), Cheong and Kim (2012, and references therein), Yi et al. (2012), Yoon et al. (2014), Kim et al. (2015), Seo et al. (2016), Zhang et al. (2016), Zhai et al. (2016), Jo et al. (2018), Park et al. (2020), Choi et al. (2021), Kim, S.W. et al. (2021), and Zhang et al. (2021).

The eastern extent of the Dabie-Sulu collision Belt between the North China and South China Cratons into the Korean Peninsula has long been discussed. For example, the validity of the tectonic interpretation known as the Sino-Korean Craton model in which the basement massifs of the Korean Peninsula belong to the North China Craton has been supported by many authors (e.g., Zhai et al., 2007; Kim, M.J. et al., 2021). Yin and Nie (1993) suggested the indented model in which the Sulu collision Belt and Tanlu fault were considered to be correlated to the Imjingang Belt and Honam Shear Zone in the Korean Peninsula. In this model, the whole Gyeonggi Massif was considered to be correlated to the South China Craton. A model which considers the Hongseong-Imjingang Belt as a suture zone was also proposed (e.g., Kim, S.W. et al., 2011b). In this model, the western coast and other parts of the Gyeonggi Massif can be correlated to the North China and South China Cratons, respectively. On the other hand, Oh et al. (2005) suggested that the Dabie-Sulu collision Belt extends into the Gyeonggi Massif based on finding Permian-Triassic eclogite in the Hongseong area of the southwestern Gyeonggi Massif. Triassic post-collisional igneous rocks in the Odesan area of the eastern part of the Gyeonggi Massif further confirm that the Hongseong-Odesan Belt was the extension of the Dabie-Sulu collision Belt, which crosses the Gyeonggi Massif (Oh et al., 2006) and separates the Gyeonggi Massif into the Northern and Southern Gyeonggi Massifs (Oh and Kusky, 2007). In addition, Neoproterozoic igneous rocks in the Northern Gyeonggi Massif formed in a rift tectonic setting, whereas those of the Southern Gyeonggi Massif formed in both rift and arc tectonic environments (Lee et al., 2020). These characteristics support Oh and Kusky’s tectonic model (2007), in which the Northern and Southern Gyeonggi Massifs were correlated with the North China and South China Cratons, respectively (Lee et al., 2020).

Numerous Phanerozoic plutonic rocks intruded throughout the whole Korean Peninsula. They occupy approximately one-third of the ground surface of the Korean Peninsula. Permian-Triassic granitoids in the southern part of the Korean Peninsula were mostly formed in a subduction-related tectonic setting, except for the Triassic post-collisional magmatic rocks in and around the Gyeonggi Massif (e.g., Kim, S.W. et al., 2011a; 2021; Kim, T.S. et al., 2011). These studies confirmed that the Korean Peninsula was affected by continental collisional events and subduction tectonism during the Permian to Triassic. The most abundant Jurassic Daebo granitoids are exposed throughout the Korean Peninsula as a product of arc magmatism (Fig. 1). The Cretaceous granitoids, so-called Bulguksa granitoids, occur mostly as small plutons and are mainly found in the Gyeongsang Basin. Igneous rocks showing the same intrusion age as those of the Bulguksa granitoids widely occur in the Japanese Islands.

2.2 Japanese Islands

In contrast to the Korean Peninsula, exposures of Precambrian outcrops are extremely limited on the Japanese Islands, and they occur only as small bodies with scales of less than several kilometers in two locations: the Oki Belt (Tsutsumi et al., 2006; Cho et al., 2021b; Kawabata et al., 2021) and the westernmost Maizuru Belt (Kimura et al., 2019, 2021).

Most of the basement rocks in the Japanese Islands consist of Phanerozoic subduction-related products such as accretionary complexes, high-pressure metamorphic complexes, ophiolites, and arc magmatic rocks (e.g., Ichikawa 1990; Wakita, 2013; Wallis et al., 2020). In Northeast Japan, a major part of the Paleozoic to Mesozoic basement rocks is covered by Cenozoic sediment and/or volcanic sequences, in contrast to their well exposure in Southwest Japan. In this respect, numerous studies on the pre-Cretaceous basement have been carried out in Southwest Japan to track tectonic evolution. Southwest Japan is further divided into the Inner Zone and Outer Zone by the Median Tectonic Line (MTL) (Fig. 2). The MTL marks a large geological contrast. The geotectonic units of the Inner Zone are characterized by accretionary complexes, high-pressure metamorphic rocks, ophiolites, and numerous Cretaceous to Paleogene igneous rocks, whereas those of the Outer Zone mostly consist of accretionary complexes and high-pressure metamorphic rocks without large Cretaceous to Paleogene igneous bodies.

Fig. 2.

Locations and zircon U-Pb ages of the Permian to Jurassic (partly latest Carboniferous) granitoids in the Japanese Islands from the previously reported literature. Data sources are same as compiled in Table 1. The distributions of the Hida Belt, Oki Belt, and Maizuru Belt are shown on this map.

In Southwest Japan, the major accretionary complexes are recognized as the Akiyoshi Belt (Permian), Ultra-Tamba Belt (Permian to Early Triassic), and Tamba-Mino-Ashio Belt (latest Triassic to earliest Cretaceous, mainly Jurassic) in the Inner Zone and the Chichibu Belt (Permian and Jurassic to earliest Cretaceous) and Shimanto Belt (Cretaceous to Paleogene) in the Outer Zone (brief summaries of these accretionary complexes are provided in Wakita (2013), Kojima et al. (2016) and Wallis et al. (2020)). High-pressure metamorphic complexes in the Inner Zone of Southwest Japan have been divided into three belts, the Renge/Sangun-Renge Belt (ca. 300 Ma), Suo Belt (ca. 220 Ma), and Chizu Belt (ca. 180 Ma), based on radiometric ages (Shibata and Nishimura, 1989). However, Nishimura (1998) reclassified the belts as the Renge Belt (330-280 Ma) and Suo Belt (230-160 Ma) based on integrated radiometric ages. Whether the two-division or three-division classification is applied still differs depending on the author. The Sambagawa/Sanbagawa Belt is developed in the Outer Zone of Southwest Japan. This Belt is characterized by Cretaceous high-pressure metamorphism (detailed geology is reviewed in Wallis and Okudaira, 2016). The Maizuru Belt in the Inner Zone of Southwest Japan (Fig. 2) is characterized as an island arc-back arc system that is different from the accretionary complexes and high-pressure metamorphic complexes in Southwest Japan. The Maizuru Belt is subdivided into the Southern, Central, and Northern zones based on lithology (Kano et al., 1959). The Southern, Central, and Northern zones are characterized as an intraoceanic island arc, back-arc basin, and continental crust, respectively (Kojima et al., 2016). Basically, the accretionary complexes and high-pressure metamorphic complexes of the Inner Zone mark a low-angle piled nappe structure and show a mosaic distribution pattern (Hayasaka, 1987). However, only the Maizuru Belt shows a remarkably linear distribution without showing a mosaic pattern. In addition, the Maizuru Belt crosscuts the zonal trend of the accretionary complexes and high-pressure metamorphic complexes. Moreover, the northern margin of the Maizuru Belt represents a high-angle dextral fault, whereas the southern boundary is characterized as a low-angle fault (Hayasaka, 1987). Although the tectonic evolution and setting of the Maizuru Belt are still under debate, a large-scale (i.e., 500 km) dextral strike-slip fault along the northern margin of the Maizuru Belt has been proposed to explain this pattern (Fujii et al., 2008).

Nearly 30% of the ground surface on the Japanese Islands is occupied by granitic rocks, and 80% of them formed during 130-40 Ma (e.g., Nakajima et al., 2016).

Outcrops of Precambrian rocks are found on Oki Island (the Oki Belt) and in the westernmost part of the Maizuru Belt, western Honshu Island (Fig. 2). The gneiss-granitoid complex on Oki Island is a Precambrian basement (Tsutsumi et al., 2006; Cho et al., 2021b; Kawabata et al., 2021), which may have been part of the continental massifs in the Korean Peninsula; however, details are still under debate. Another Archean to Paleoproterozoic magmatic-metamorphic complex named the “Tsuwano Complex” occurs as lenticular bodies less than 2.5 km in scale surrounded by the Permian sedimentary rocks of the Maizuru Belt (Kimura et al., 2019, 2021). Kimura et al. (2019, 2021) suggested the North China Craton as the origin of the Tsuwano Complex, which was transported as a result of the 500 km scale dextral strike-slip fault along the northern margin of the Maizuru Belt proposed by Fujii et al. (2008).

The Hida Belt, situated on the continental side of the Japanese Islands (Fig. 2), is characterized by Permian-Triassic and Jurassic granitoids (Hida granite), gneiss and migmatite (Hida gneiss), and intermediate pressure/temperature (P/T)-type schist (Unazuki schist). The lithological features of the Hida Belt mark a large contrast to other geotectonic units of the Japanese Islands. Therefore, the Hida Belt has been considered to be a fragment of continental crust from a former East Asian continent. The Hida Belt is considered to be thrust upon the Hida Gaien Belt (also called the Hida Marginal Belt) and the Jurassic accretionary complex as a nappe, which is known as the “Hida Nappe” hypothesis (Komatsu et al., 1985). The Hida Nappe activity is thought to have occurred between 180 and 150 Ma because the Early Jurassic granitoids intruded into only the Hida Belt, while the Late Jurassic to Early Cretaceous sedimentary rocks cover both the Hida Belt and the surrounding units (Sohma and Kunugiza, 1993). The Hida Belt is characterized by the occurrence of a dextral ductile shear zone named the “Funatsu Shear Zone” (Komatsu et al., 1988). With recent progress in zircon U-Pb dating, the timing of mylonitization in the “Funatsu Shear Zone” is estimated to be between 243 and 191 Ma (Takahashi et al., 2010; Takehara and Horie, 2019) based on zircon U-Pb age dating from deformed and undeformed granitoids. Takahashi et al. (2010) further proposed that the dextral ductile shear activity of the “Funatsu Shear Zone” possibly took place ca. 215-211 Ma based on K-Ar dating of hornblende from fault-related rocks. Zhao et al. (2013) pointed out that the recrystallized zircon age of ca. 220 Ma from felsic gneiss possibly represents the timing of the Funatsu shear activity.

The paleoposition of the Hida Belt is still controversial, and different models have been proposed, such as the North China Craton origin (Horie et al., 2010, 2018; Takahashi et al., 2018), the South China Craton origin (Wallis et al., 2020), and the Central Asian Orogenic Belt (CAOB) origin (Zhao et al., 2013). Horie et al. (2010, 2018) revealed abundant Eoarchean to Paleoproterozoic inherited zircons from granitoids of the Hida Belt in the Unazuki area, and suggested that the source of the granitoids in the Unazuki area was the North China Craton based on older inherited zircons. On the other hand, Zhao et al. (2013) suggested that the origin of the Hida Belt was the Jiamushi Massif based on the similarity of the zircon U-Pb ages, lithological characteristics, and isotopic compositions.

3. Review of the Permian to Jurassic granitoids

The latest Paleozoic to Mesozoic granitoids are widespread in East Asia, including the Indochina Peninsula, southern to eastern parts of China, the Korean Peninsula, the Japanese Islands, and Far East Russia (e.g., Wakita et al., 2021). These granitoids are considered to have formed by subduction and/or collisional processes.

3.1 Korean Peninsula

The distributions of the Permian, Triassic, and Jurassic plutons in the Korean Peninsula are shown in Fig. 1 with zircon U-Pb ages and locations from previous studies.

Yi et al. (2012) reported the first zircon U-Pb ages from Permian arc-related plutons in South Korea (Fig. 1). Zircon U-Pb ages of 257.3 ± 2.0 and 255.7 ± 1.4 Ma from the Jangsari pluton and 252.9 ± 2.5 to 246.7 ± 2.1 Ma from the Yeongdeok pluton, located in the northeastern part of the Gyeongsang Basin, confirmed that the subduction system had developed since the Late Permian period (Yi et al., 2012). Kim, S.W. et al. (2021) reported Middle Permian to Late Triassic arc granitoids (271.5 ± 2.2 to 222.2 ± 0.5 Ma) from the central part of the Yeongnam Massif (Fig. 1). Based on their own results and previously reported data, Kim, S.W. et al. (2021) concluded that arc magmatism in the Yeongnam Massif initiated at least 272 Ma and continued until 216 Ma. Choi et al. (2021) further confirmed that the Permian arc-related magmatism in the Gyeongsang Basin can be traced back to 283.0 ± 1.8 Ma, and arc magmatism was long-lived (~30 Ma) in this region. Cheong et al. (2019) suggested that the ca. 222-217 Ma magmatism in the Yeongnam Massif formed under extension-related magmatism based on the integrated chronological, geochemical, and isotopic data of the plutons.

The Middle-Late Triassic plutonic rocks (ca. 235-225 Ma) found in and around the Gyeonggi Massif are considered to have formed in a post-collisional tectonic setting (e.g., Oh et al., 2006; Williams et al., 2009; Kim, S.W. et al., 2011a; Kim, T.S. et al., 2011; Cheong et al., 2015, 2019; Fig. 1). The Triassic age peaks in the Gyeonggi Massif reflect considerable post-collisional igneous activity (Fig. 3d), while those of the Gyeongsang Basin, the Yeongnam Massif, and the Ogcheon Belt represent subduction-related arc magmatism (Fig. 3e, 3f). The Imjingang Belt and the Nangrim Massif have Triassic igneous rocks ranging from 234-215 Ma (Fig. 1). Although their tectonic setting is not entirely clear, these ages and geochemical characteristics are similar to those of the post-collisional igneous rocks in the Gyeonggi Massif (ca. 235-225 Ma; Fig. 1). Zhai et al. (2016) suggested that Triassic igneous activity in North Korea (mainly the Nangrim Massif) may have occurred in a postorogenic tectonic setting related to the collision between the North China and South China Cratons or the CAOB and North China Craton. Thus, the Triassic igneous rocks in the Nangrim Massif likely formed due to post-collisional activity, similar to the Gyeonggi Massif (Fig. 3c).

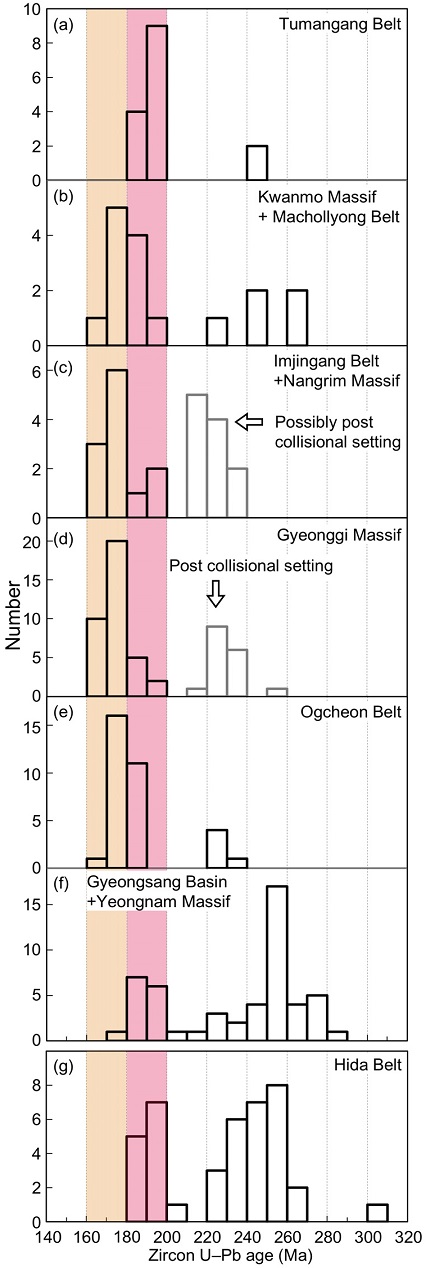

Fig. 3.

Age histograms of the Permian-Jurassic (some are latest Carboniferous) granitoids in the Korean Peninsula from north to south (a-f) and the Hida Belt (g). The data sources are same as in Figs. 1 and 2.

In the northeastern part of the Korean Peninsula, Middle Permian to Late Triassic igneous rocks occur related to 264-247 and 222 Ma igneous ac-tivity in the Machollyong Belt and the Kwanmo Massif and 248-246 Ma activity in the Tumangang Belt (Wu et al., 2007; Zhai et al., 2016, 2019; Zhang et al., 2021; Figs. 1, 3a, 3b). Most of these ages are much older than the post-collisional activity in the Korean Peninsula and are probably not related to the collisional event. Instead, their age range is contemporaneous with the Permian to Triassic arc igneous rocks in the Gyeongsang Basin, Yeongnam Massif, and Ogcheon Belt. Zhang et al. (2016) pointed out that the Late Permian to Early Triassic granitoids in the northeastern part of the Korean Peninsula were most likely related to subduction-related magmatism.

Jurassic granitoids are widespread throughout the Korean Peninsula (Fig. 1) and are known as Daebo granitoids. Their ages show a range from ca. 200-160 Ma, with a magmatic hiatus of <160 Ma during the Late Jurassic Period. The spatiotemporal distribution of the Jurassic granitoids in the Korean Peninsula has long been discussed by many authors (e.g., Park et al., 2010; Cheong and Kim, 2012; Kiminami and Imaoka, 2013; Kim et al., 2015; Cheong and Jo, 2020; Lee et al., 2021). Park et al. (2010) concluded that Jurassic igneous activity first occurred in the Yeongnam Massif at ca. 200 Ma; then, the locus of intrusion propagated further northwest until ca. 160 Ma. Park et al. (2010) explained this spatiotemporal distribution as reflecting variations in the distance to the trench, direction of subduction, and/or subduction angle. Kim et al. (2015) revealed the distribution of Jurassic granitoids based on SHRIMP zircon U-Pb dating of twenty-one samples from the southern Korean Peninsula: ca. 189-186 and 177 Ma from the northern margin of the south-western Yeongnam Massif (the 177 Ma granitoid is located almost on the boundary with the Ogcheon Belt), ca. 178-166 Ma from the central Ogcheon Belt, ca. 176-174 Ma from the northeastern Ogcheon Belt, and ca. 177-173 Ma from the Gyeonggi Massif. Kim et al. (2015) further concluded based on integrated age data that Jurassic igneous activity gradually migrated toward the continental side across the Korean Peninsula as a result of the shallowing subduction angle of the paleo-Pacific plate. Cheong and Jo (2020) explained the migration of magmatic activity by the shallowing subduction angle and subsequent flat subduction possibly due to the subduction of buoyant material.

The Kwanmo Massif and Tumangang Belt of the northeastern part of the Korean Peninsula also have cohesive exposure of the Permian to Jurassic plutons, as mentioned above (Figs. 1, 3a, 3b). Although the available data are limited, Jurassic magmatic activity in this region shows an age range of ca. 198-173 Ma (Fig. 1), with a westward younging trend; igneous activities with ages of ca. 200-180 Ma occur in the Tumangang Belt (Fig. 3a), and those with ages of ca. 190-170 Ma are dominant in the Kwanmo Massif (Fig. 3b). Wu et al. (2007) suggested that the Jurassic igneous rocks in this region were possibly formed in an arc tectonic setting based on the occurrences of abundant subduction-related products along this area.

3.2 Japanese Islands

The Paleozoic to Jurassic granitoids are limited and localized in their distribution on the Japanese Islands. The locations and ages of the previously reported Permian to Jurassic (partly latest Carboniferous) granitoids based on zircon U-Pb dating are compiled in Fig. 2 and listed in Table 1. In this chapter, we review the Permian to Jurassic granitoids in the Hida Belt (3.2.1), Maizuru Belt (3.2.2), and other units (3.2.3) in the following subsections.

Table 1.

Summary of the collected U-Pb age data of Permian to Jurassic granitoids (partly latest Carboniferous) from the Japanese Islands. Abbreviation, Bt; biotite, Hbl; hornblende, Grt; garnet.

3.2.1 Permian to Jurassic granitoids in the Hida Belt

The magmatic activity in the Hida Belt took place during two major intervals: ca. 260-230 Ma (Hida older granite) and 200-180 Ma (Hida younger granite) (Horie et al., 2010, 2013, 2018; Takahashi et al., 2010, 2018; Zhao et al., 2013; Koizumi and Otoh, 2019; Takehara and Horie, 2019; Takeuchi et al., 2019; Cho et al., 2021a; Yamada et al., 2021; Figs. 2, 3g). Cho et al. (2021a) revealed the latest Carboniferous to Permian protolith magmatic ages of 302.2 ± 2.1, 267.8 ± 1.8, and 259.9 ± 4.8 to 254.0 ± 2.3 Ma from eight Hida orthogneiss samples and suggested that these ages represent arc igneous activity. Most recently, Yamada et al. (2021) confirmed that the activity of the Hida younger granite occurred until 180.9 ± 1.1 Ma. Arakawa and Shinmura (1995) revealed that the Hida granitoids (including both the Hida older and Hida younger granites) show an arc tectonic setting based on whole-rock chemical analysis. Horie et al. (2010) also suggested that most Hida granitoids formed in an arc tectonic setting except for one analyzed sample (256 ± 2 Ma granite) that shows transitional features between the arc and syn-collisional granite fields; however, more studies are needed, as suggested by Horie et al. (2010). Most recently, Yamada et al. (2021) confirmed that both the Triassic (Hida older granite) and Jurassic (Hida younger granites) plutons show subduction-related characteristics, such as negative Nb and Ta anomalies, and display an arc tectonic setting based on whole-rock geochemical data. Based on these previously reported data, granitoids in the Hida Belt are considered to have formed during two prominent magmatic episodes ca. 260-230 and 200-180 Ma (Figs. 2, 3g) in an arc tectonic setting.

Apart from the main distribution area within the Hida Belt in central Honshu, the western part of the Tottori area in western Honshu also has Permian to Jurassic granitoids (Fig. 2; Table 1). Although their affinities are still under debate, this paper considers these rocks as part of the Hida Belt following the interpretation of Ishiga et al. (1989) and Tsutsumi et al. (2018). Previously, Ishiga et al. (1989) suggested that the Hida Belt extends to the western Tottori area based on the findings of gneisses and mylonites. The Jurassic granitoids (198.6 ± 2.7 Ma from quartz diorite; Ishihara et al., 2012; Fig. 2; Table 1) in this area are in contact with the Mesozoic high-pressure metamorphic rocks to the south, and this boundary is defined as the “Ebi Tectonic Zone” (Ishiga et al., 1991). The tectonic features of this boundary are very important because they indicate that the rock unit (Hida Belt equivalent) of which the continental affinity is in contact with that (Mesozoic high-pressure metamorphic complex) of the accretionary affinity. Further study is necessary to reveal the details of the Ebi Tectonic Zone, which possibly holds a key to correlating the Korean Peninsula and the Japanese Islands.

3.2.2 Permian to Triassic granitoids in the Maizuru Belt

Permian to Triassic granitoids in the Maizuru Belt can be divided into two types based on their petrological and lithological characteristics. One is found in the Northern Maizuru Belt, and the other occurs in the Southern Maizuru Belt. Granitoids are a major lithological phase in the Northern Maizuru Belt and show a wide age range from the Archean-Paleoproterozoic and Cambrian to Triassic (ca. 2700, 2500, 1850 Ma, and 489-243 Ma; Fujii et al., 2008; Tsutsumi et al., 2014; Harada et al., 2015; Kimura et al., 2019, 2021). Granitoids in the Northern Maizuru Belt are correlated with East Asian blocks, such as the Khanka Massif (Fujii et al., 2008; Tsutsumi et al., 2014) and North China Craton (Kimura et al., 2019, 2021), based mainly on their similar ages. In contrast to the Northern Maizuru Belt, in the Southern Maizuru Belt, gabbroic rocks known as the Yakuno ophiolite are the major phase with minor granitoids (Ishiwatari, 1985, 1999; Suda et al., 2014; Suda and Hayasaka, 2009). From the Southern Maizuru Belt, only Early Permian zircon U-Pb ages (285 ± 2 and 282 ± 2 Ma from the plagiogranite) have been reported thus far (Herzig et al., 1997; Fig. 2; Table 1). Moreover, the Early Permian granitoids in the Southern Maizuru Belt are considered to have formed in an intraoceanic island arc setting based on their petrological and geochemical characteristics (Suda et al., 2014).

3.2.3 Permian and Jurassic granitoids in other units

Extremely small and isolated exposures of Permian granitoids have been reported with ages of 290.0 ± 12.4 Ma (Sakashima et al., 2003) from easternmost Kyushu, 285.4 ± 1.9 to 278.8 ± 2.0 Ma (Kawaguchi et al., 2021) from western Honshu, 285.1 ± 1.8 Ma (Ogasawara et al., 2016) from central Honshu and 304.3 ± 1.7 to 293.0 ± 1.8 Ma (Tsutsumi et al., 2010) and 308 ± 3 to 302 ± 4 Ma (Tsuchiya et al., 2014) from Northeast Japan (Fig. 2, Table 1). However, they occur as small bodies, and the detailed tectonic linkages between them and the surrounding tectonic units and their origin are still unknown.

Jurassic granitoids also occur on the westernmost part of Shikoku Island in the Outer Zone of Southwest Japan as small, elongated mylonitic bodies less than 100 m in scale (Fig. 2; Table 1). The granitic mylonites show ages of 168.5 ± 1.7 and 167.5 ± 2.7 Ma (Osanai et al., 2021). This body does not affect the surrounding rocks through contact metamorphism, and their boundary is marked as a fault (Takeda, 1995; Osanai et al., 2021). Therefore, this rock body likely occurs as exotic blocks, and no tectonic model regarding the origin of these granitoids has been proposed thus far.

4. Tectonic implications

4.1 Magmatic front migration during the Jurassic

Although Permian to Jurassic plutons are widespread throughout the Korean Peninsula, their distribution has a definitive trend. To reveal the spatiotemporal distribution of the Permian to Jurassic plutons in the Korean Peninsula, we projected the zircon U-Pb ages of granitoids along the SE-NW-directed A-A’ line (Fig. 4a) and E-W-directed B-B’ line (Fig. 4b), as shown in Fig. 1. The Permian to Triassic arc-related granitoids exposed in the southeastern part of the Korean Peninsula (the Yeongnam Massif and Gyeongsang Basin; Figs. 3f, 4a) do not show any clear trend. This pattern indicates the existence of prolonged arc magmatic activity in this region starting in the late Early Permian (Fig. 4a). However, a lull in arc magmatic activity probably occurred in the Late Triassic (after ca. 216 Ma; Figs. 3f, 4a). The Middle to early-Late Triassic post-collisional granitoids in Fig. 4a mostly correspond to the magmatism in the Gyeonggi Massif, Imjingang Belt, and Nangrim Massif. The Triassic igneous rocks in the central to western part of the Nangrim Massif are slightly younger than those in the Gyeonggi Massif, Imjingang Belt, and southern margin of the Nangrim Massif; however, they may have formed in a post-collisional setting (Figs. 1, 3c). The Permian to Triassic granitoids in the northeastern part of the Korean Peninsula (Fig. 4b) are considered to be related to arc igneous activity (Fig. 4b).

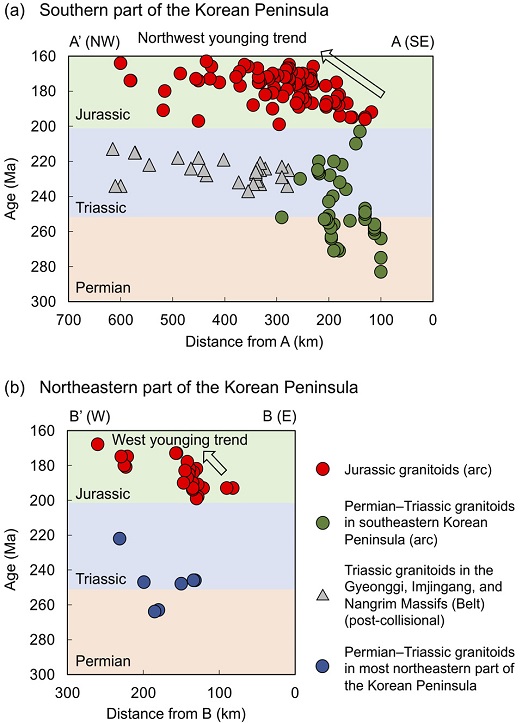

Fig. 4.

(a) Projection of the zircon U-Pb ages from the granitoids in the southern part of the Korean Peninsula (the Gyeongsang Basin, Yeongnam Massif, Ogcheon Belt, Gyeonggi Massif, Imjingang Belt, and Nangrim Massif) to the SE-NW oriented A-A’ line shown in Fig. 1. (b) Projection of the zircon U-Pb ages from the granitoids in the northeastern part of the Korean Peninsula (the Tumangang Belt, Kwanmo Massif, and Machollyong Belt) to the E-W oriented B-B’ line displayed in Fig. 1.

The magmatism of the Jurassic granitoids in the Gyeongsang Basin and Yeongnam Massif occurred mostly during ca. 200-180 Ma (Fig. 3f). The ages of magmatic activity in the Ogcheon Belt (ca. 190-170 Ma) are younger than those in the Gyeongsang Basin and Yeongnam Massif (Fig. 3e). Moreover, the ages of the main Jurassic magmatic activity in the Gyeonggi and Nangrim Massifs and Imjingang Belt are much younger, ca. 180-160 Ma (Fig. 3c, 3d). Although the number of data points is limited, the Tumangang Belt in the northeasternmost part of the Korean Peninsula shows a magmatic age of ca. 200-180 Ma, which is the same as those of the Gyeongsang Basin and Yeongnam Massif in the southeastern part of the Korean Peninsula (Fig. 3a, 3f). The ages of igneous activity in the Kwanmo Massif and Machollyong Belt located to the southwest of the Tumangang Belt are much younger than those in the Tumangang Belt (mostly 190-170 Ma) and are similar to those in the Ogcheon Belt (Fig. 3a, 3b). On the Korean Peninsula, Jurassic magmatic activity stopped ca. 160 Ma (Fig. 3a-f). These Jurassic plutons in the Korean Peninsula are thought to have formed in an arc tectonic setting (e.g., Kim et al., 2015). In contrast to the Permian to Triassic arc-related granitoids, Jurassic granitoids show a wide distribution with a northwestward younging trend in the southern parts of the Korean Peninsula (Fig. 4a) and a westward younging trend in the northeastern part (Fig. 4b). In summary, the Jurassic magmatic trend in the Korean Peninsula during the early stage of Jurassic magmatism (ca. 200-190 Ma) indicates that subduction-related igneous activity took place on the trench side (Fig. 5a). At the same time, the Jurassic accretionary complex of the Tamba-Mino-Ashio Belt formed in the nonmagmatic forearc region (Fig. 5a). As subduction progressed, the magmatic front propagated toward the interior of the continent (Fig. 5b) because the dehydration position of the subducted oceanic crust migrated inland due to the shallowing subduction angle (Fig. 5).

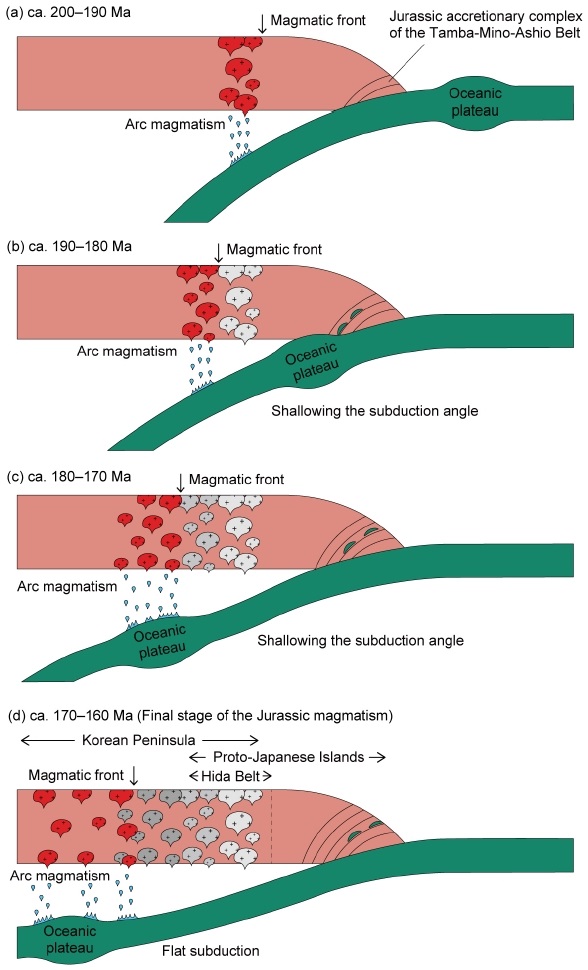

Fig. 5.

Schematic illustration of the spatiotemporal distribution of the Jurassic plutons along the Korean Peninsula to the proto-Japanese Islands. (a) The Jurassic subduction system initiated ca. 200 Ma, forming arc magmatic rocks and the Jurassic accretionary complex of the Tamba-Mino-Ashio Belt in the Inner Zone of Southwest Japan. (b) The 190-180 Ma magmatic front migrated inland due to the shallowing subduction angle, probably caused by the subduction of buoyant oceanic plateaus. (c) The 180-170 Ma magmatic front propagated toward the continental side, and the granitoids during this period show a wide distribution with the progress of the subduction of the oceanic plateaus. (d) Flat subduction due to the subduction of oceanic plateaus formed wide occurrences of arc magmatism during ca. 170-160 Ma.

The subduction angle shallowing was most likely induced by the subduction of buoyant materials such as ridges or oceanic plateaus. Studies of the Jurassic accretionary complex in the Inner Zone of Southwest Japan hold a key clue to confirm this possibility. During the Jurassic, voluminous accretionary complexes were formed in the forearc region, which are presently recognized as the Tamba-Mino-Ashio Belt in Southwest Japan (Fig. 5). Pelagic radiolarian chert is extremely abundant in the Tamba-Mino-Ashio Belt (Matsuda and Isozaki, 1991; Nakae, 2000). This lithological feature indicates that the subducted oceanic crust was quite old and cold. Therefore, ridge subduction is unlikely to have occurred. Instead, accreted mafic rock of the Tamba-Mino-Ashio Belt indicates a hot spot oceanic island and/or oceanic plateau setting (Jones et al., 1993; Koizumi and Ishiwatari, 2006; Ichiyama et al., 2008). Moreover, fragments of Carboniferous to Early Permian oceanic plateaus have been reported from the Early Jurassic accretionary complex (Type II unit of the Tamba Belt, western Honshu) (Koizumi and Ishiwatari, 2006). Therefore, the oceanic plateaus were subducted under the trench during the Early Jurassic (Fig. 5a, 5b). Subduction of thick oceanic plateaus caused shallow subduction due to their higher buoyancy than thin mid-ocean ridge basalt (MORB)-type oceanic crust. Continuous subduction of the oceanic plateaus caused further shallowing of the subduction angle, and the magmatic front propagated inland during ca. 180-170 Ma (Fig. 5c). In addition, younger Jurassic magmatic activity (ca. 180-160 Ma) occurred widely in the central to western part of the Korean Peninsula (Figs. 1, 5c, 5d). This is most likely due to flat subduction resulting from the continuous shallowing of the subduction angle (Fig. 5c, 5d).

In addition to the southern part of the Korean Peninsula, the Jurassic magmatic rocks of the northeastern part of the peninsula display a westward younging trend (Fig. 4b). This distribution indicates that the westward migration of the arc front occurred in the northeastern part of the Korean Peninsula during this time, probably due to the shallowing subduction angle of the paleo-Pacific plate, as in the southern part of the Korean Peninsula.

Based on the spatiotemporal distribution of the Jurassic granitoids in the Korean Peninsula, estimated magmatic fronts at 190 Ma, 180 Ma, and 170 Ma are displayed in Fig. 6. During the early stage of the Jurassic Period ca. 200-190 Ma, subduction-related arc igneous activity took place in the southeastern and northeastern parts of the modern Korean Peninsula and might have marked a NE-SW- to N-S-trending arc belt (Fig. 6). The magmatic front moved continuously toward the interior of the continent from 200 to 170 Ma along the NE-SW- to N-S-trending arc belt (Fig. 6). The wide distribution of later-stage Jurassic granitoids (ca. 180-160 Ma) in the central to western Korean Peninsula indicates that arc igneous activities were abundant on the continental side far from the trench. This distribution can be explained by the flat subduction of the paleo-Pacific plate, as mentioned above (Fig. 5d).

Fig. 6.

Estimated position of the Jurassic magmatic front along the Korean Peninsula to the proto-Japanese Islands for a 10 Myr interval. The probable paleoposition of the Hida Belt is also illustrated in this figure.

5. Summary remarks

1) Permian to Triassic granitoids occur throughout the whole Korean Peninsula with a special distribution pattern. The late Early Permian to Late Triassic granitoids formed in an arc tectonic setting (ca. 280-215 Ma) and are abundant in the Gyeongsang Basin and Yeongnam Massif of the southeastern Korean Peninsula and the Tumangang Belt, Kwanmo Massif, and Machollyong Belt of the northeastern Korean Peninsula. In contrast, the Late Triassic granitoids (ca. 235-225 Ma) formed in a post-collisional tectonic setting are commonly found in the Gyeonggi Massif, Imjingang Belt, and Nangrim Massif.

2) Permian to Jurassic granitoids are scarce in the Japanese Islands, and most of them occur in the Hida Belt. The Permian to Jurassic granitoids in the Hida Belt formed in an arc tectonic setting and display two major age clusters of ca. 260-230 Ma and ca. 200-180 Ma. This pattern of ages suggests that the Hida Belt was part of a volcanic arc that formed on the eastern margin of the Korean Peninsula and was probably located between the Permian-Triassic volcanic arcs in the southeastern and northeastern Korean Peninsula. The 200-180 Ma granitoids indicate that arc magmatism continued until 180 Ma but stopped at that time in the Japanese Islands.

3) The arc-related Jurassic granitoids (200-160 Ma) in the Korean Peninsula have a selective distribution pattern showing northwestward and westward-younging trends in the southern and northeastern Korean Peninsula, respectively, with a wide distribution of 180-160 Ma granitoids. This pattern indicates that the position of the magmatic front migrated toward the interior of the continent from 200 to 170 Ma due to the shallowing angle of subduction, and flat subduction occurred during 180-160 Ma. This evolution of the subduction style was most likely induced by the subduction of oceanic plateaus, which caused buoyancy.

4) The Hida Belt may have developed in a missing part of the continental arc between the continental arcs that existed in the southeastern and northeastern parts of the Korean Peninsula.

Acknowledgments

We are grateful to Dr. Seung Hwan Lee of KIGAM, Republic of Korea, and Dr. Kosuke Kimura of the National Institute of Technology, Kure College, Japan, for their useful discussions and suggestions. Constructive review comments from three anonymous reviewers have greatly helped to improve the manuscript. We further appreciate the journal editor for the able handling. This paper was financially supported by the National Research Foundation of Korea (NRF-2017K1A1A2013180).

References

• Arakawa, Y. and Shinmura, T., 1995, Nd-Sr isotopic and geochemical characteristics of two contrasting types of calc-alkaline plutons in the Hida belt, Japan. Chemical Geology, 124, 217-232. [https://doi.org/10.1016/0009-2541(95)00012-B]
• Cheong, A.C.S. and Jo, H.J., 2020, Tectonomagmatic evolution of a Jurassic Cordilleran flare-up along the Korean Peninsula: Geochronological and geochemical constraints from granitoid rocks. Gondwana Research, 88, 21-44. [https://doi.org/10.1016/j.gr.2020.06.025]
• Cheong, A.C.S., Jo, H.J., Jeong, Y.J. and Li, X.H., 2019, Magmatic response to the interplay of collisional and accretionary orogenies in the Korean Peninsula: Geochronological, geochemical, and O-Hf isotopic perspectives from Triassic plutons. The Geological Society of America Bulletin, 131, 609-634. [https://doi.org/10.1130/B32021.1]
• Cheong, C.S. and Kim, N., 2012, Review of Radiometric Ages for Phanerozoic Granitoids in Southern Korean Peninsula. The Journal of the Petrological Society of Korea, 21, 173-192 (in Korean with English abstract). [https://doi.org/10.7854/JPSK.2012.21.2.173]
• Cheong, C.S., Kim, N., Jo, H.J., Cho, M., Choi, S.H., Zhou, H. and Geng, J.Z., 2015, Lithospheric mantle signatures as revealed by zircon Hf isotopes of Late Triassic post-collisional plutons from the central Korean peninsula, and their tectonic implications. Terra Nova, 27, 97-105. [https://doi.org/10.1111/ter.12135]
• Cherniak, D.J. and Watson, E.B., 2000, Pb diffusion in zircon. Chemical Geology, 172, 5-24. [https://doi.org/10.1016/S0009-2541(00)00233-3]
• Cho, D.L., Lee, T.H., Takahashi, Y., Kato, T., Yi, K., Lee, S. and Cheong, A.C.S., 2021a, Zircon U-Pb geochronology and Hf isotope geochemistry of magmatic and metamorphic rocks from the Hida Belt, southwest Japan. Geoscience Frontiers, 12, 101145. [https://doi.org/10.1016/j.gsf.2021.101145]
• Cho, D.L., Takahashi, Y., Kim, S.W., Yi, K. and Lee, B.C., 2021b, Zircon U-Pb-Hf and geochemical analyses of paragneiss and granitic gneiss from Oki-Dogo Island, Southwest Japan and its tectonic implications. Lithos, 396-397, 106217. [https://doi.org/10.1016/j.lithos.2021.106217]
• Choi, H.O., Choi, S.H. and Kim, S.S., 2021, Zircon U-Pb geochronology and Sr-Nd-Pb-Hf isotope geochemistry for Permian-Early Triassic arc-related magmatism in Pohang, Jangsari, and Yeongdeok, southeastern Korean Peninsula. Lithos, 382-383, 105930. [https://doi.org/10.1016/j.lithos.2020.105930]
• Fujii, M., Hayasaka, Y. and Terada, K., 2008, SHRIMP zircon and EPMA monazite dating of granitic rocks from the Maizuru terrane, southwest Japan: Correlation with East Asian Paleozoic terranes and geological implications. Island Arc, 17, 322-341. [https://doi.org/10.1111/j.1440-1738.2008.00623.x]
• Fushiki, O., Hayasaka, Y., Fujii, M. and Terada, K., 2007, Terrane analysis for the Pre-Cretaceous Formations and origin of associated ophiolitic rocks in the Gotsu area, Shimane Prefecture, Southwest Japan. 114th Annual Meeting of the Geological Society of Japan, (Abstracts), Sapporo, September 9-11, O-154 (in Japanese).
• Harada, T., Hayasaka, Y. and Kimura, K., 2015, Discovery of late Cambrian granite mylonite in the northern Okayama Prefecture, SW Japan. 123th Annual Meeting of the Geological Society of Japan, (Abstracts), Tokyo, September 10-12, R5-P-28 (in Japanese).
• Hayasaka, Y., 1987, Study on the late Paleozoic-early Mesozoic tectonic development of western half of the Inner Zone of Southwest Japan. Geological Report of Hiroshima University, 27, 119-204 (in Japanese with English abstract).
• Herzig, C.T., Kimbrough, D.L. and Hayasaka, Y., 1997, Early Permian zircon uranium-lead ages for plagiogranites in the Yakuno ophiolite, Asago district, Southwest Japan. Island Arc, 6, 396-403. [https://doi.org/10.1111/j.1440-1738.1997.tb00049.x]
• Horie, K., Takehara, M., Suda, Y. and Hidaka, H., 2013, Potential Mesozoic reference zircon from the Unazuki plutonic complex: geochronological and geochemical characterization. Island Arc, 22, 292-305. [https://doi.org/10.1111/iar.12031]
• Horie, K., Tsutsumi, Y., Takehara, M. and Hidaka, H., 2018, Timing and duration of regional metamorphism in the Kagasawa and Unazuki areas, Hida metamorphic complex, southwest Japan. Chemical Geology, 484, 148-167. [https://doi.org/10.1016/j.chemgeo.2017.12.016]
• Horie, K., Yamashita, M., Hayasaka, Y., Katoh, Y., Tsutsumi, Y., Katsube, A., Hidaka, H., Kim, H. and Cho, M., 2010, Eoarchean-Paleoproterozoic zircon inheritance in Japanese Permo-Triassic granites (Unazuki area, Hida Metamorphic Complex): Unearthing more old crust and identifying source terranes. Precambrian Research, 183, 145-157. [https://doi.org/10.1016/j.precamres.2010.06.014]
• Ichikawa, K., 1990, Pre-Cretaceous Terranes of Japan. In: Ichikawa, K., Mizutani, S., Hara, I., Hada, S., Yao, A. (eds.), Pre-Cretaceous Terranes of Japan. Publication of IGCP Project No. 224, Osaka, 1-12.
• Ichiyama, Y., Ishiwatari, A. and Koizumi, K., 2008, Petrogenesis of greenstones from the Mino-Tamba belt, SW Japan: Evidence for an accreted Permian oceanic plateau. Lithos, 100, 127-146. [https://doi.org/10.1016/j.lithos.2007.06.014]
• Ishiga, H., Dozen, K., Furuya, H., Sampei, Y. and Musashino, M., 1997, Geochemical indication of provenance linkage and sedimentary environment of the Lower Cretaceous of Southwest Japan and Kyeongsang Supergroup, Korean Peninsula. The Memoirs of the Geological Society of Japan, 48, 120-131.
• Ishiga, H., Sugawara, M. and Iizumi, S., 1991, The Ebi Tectonic Zone, Late Paleozoic suture of the southern margin of the Hida Belt in Kofu-cho, southwest of Mt. Daisen. Southwest Japan. Geological reports of Shimane University, 10, 53-56 (in Japanese with English abstract).
• Ishiga, H., Suzuki, M., Iizumi, S., Nishimura, K., Kagami, H. and Tanaka, S., 1989, Western extension of Hida terrane: with special reference to gneisses and mylonites discovered in Mizoguchi-cho, western part of Daisen, Tottori Prefecture, Southwest Japan. Journal of the Geological Society of Japan, 95, 129-132 (in Japanese). [https://doi.org/10.5575/geosoc.95.129]
• Ishihara, S., Hirano, H. and Tani, K., 2012, Jurassic granitoids intruding into the Hida and Sangun metamorphic rocks in the central Sanin District, Japan. Bulletin of the Geological Survey of Japan, 63, 227-231 (in Japanese with English abstract). [https://doi.org/10.9795/bullgsj.63.227]
• Ishiwatari, A., 1985, Igneous Petrogenesis of the Yakuno Ophiolite (Japan) in the context of the diversity of ophiolites. Contributions to Mineralogy and Petrology, 89, 115-167. [https://doi.org/10.1007/BF00379450]
• Ishiwatari, A., 1999, Fragment of Paleozoic oceanic island arc crust in the Inner Zone of southwestern Japan: The Kamigori metagabbro body, Hyogo Prefecture. The Memoirs of the Geological Society of Japan, 52, 273-285 (in Japanese with English abstract).
• Ishiwatari, A. and Tsujimori, T., 2003, Paleozoic ophiolites and blueschists in Japan and Russian Primorye in the tectonic framework of East Asia: A synthesis. Island Arc, 12, 190-206. [https://doi.org/10.1046/j.1440-1738.2003.00390.x]
• Jo, H.J., Cheong, A.C.S., Yi, K. and Li, X.H., 2018, Juxtaposition of allochthonous terranes in the central Korean Peninsula: Evidence from zircon U-Pb ages and O-Hf isotopes in Jurassic granitoids. Chemical Geology, 484, 136-147. [https://doi.org/10.1016/j.chemgeo.2017.10.006]
• Jon, G.P., Lyang, T.J., Liu, Y., Kim, S.H. and Liu, C., 2009, Late Paleozoic tectonic evolution in northern Korean Peninsula. Global Geology, 12, 94-99.
• Jones, G., Sano, H. and Jones, E.V., 1993, Nature and tectonic setting of accreted basalts from the Mino terrane, central Japan. Journal of the Geological Society, 150, 1167-1181. [https://doi.org/10.1144/gsjgs.150.6.1167]
• Kano, H., Nakazawa, K., Igi, Y. and Shiki, T., 1959, On the High-grade Metamorphic Rocks associated with the Yakuno Intrusive Rocks of the Maizuru Zone. Journal of the Geological Society of Japan, 65, 267-271 (in Japanese with English abstract). [https://doi.org/10.5575/geosoc.65.267]
• Kawabata, R., Imayama, T., Kato, T., Oh, C.W., Horie, K. and Takehara, M., 2021, Multi-stage metamorphic history of the Oki gneisses in Japan: Implications for Paleoproterozoic metamorphism and tectonic correlations in northeastern Asia. Journal of Metamorphic Geology, in press. [https://doi.org/10.1111/jmg.12627]
• Kawaguchi, K., Kimura, K., Hayasaka, Y., Hoshino, K., Okada, I. and Kuroshima, K., 2021, Discovery of Early Permian tonalite from the high P/T Triassic Suo Metamorphic Complex, Eastern Yamaguchi Prefecture, SW Japan. Journal of the Geological Society of Japan, 127, 293-304.
• Kim, M.J., Ha, Y., Choi, J.E., Park, K.H. and Song, Y.S., 2021, U-Pb ages and Hf isotopic compositions of detrital zircons from the Seochangni Formation of the northeastern Okcheon Metamorphic Belt: Implications to the crustal evolution of the Sino-Korean craton since Paleoproterozoic. Lithos, 400-401, 106340. [https://doi.org/10.1016/j.lithos.2021.106340]
• Kim, S.W., Kwon, S., Jeong, Y.J., Kee, W.S., Lee, B.C., Byun, U.H., Ko, K., Cho, D.L., Hong, P.S., Park, S.I. and Santosh, M., 2021, The Middle Permian to Triassic tectono-magmatic system in the southern Korean Peninsula. Gondwana Research, in press. [https://doi.org/10.1016/j.gr.2020.11.017]
• Kim, S.W., Kwon, S., Ko, K., Yi, K., Cho, D.L., Kee, W.S. and Kim, B.C., 2015, Geochronological and geochemical implications of Early to Middle Jurassic continental adakitic arc magmatism in the Korean Peninsula. Lithos, 227, 225-240. [https://doi.org/10.1016/j.lithos.2015.04.012]
• Kim, S.W., Kwon, S., Koh, H.J., Yi, K., Jeong, Y.J. and Santosh, M., 2011a, Geotectonic framework of Permo-Triassic magmatism within the Korean Peninsula. Gondwana Research, 20, 865-889. [https://doi.org/10.1016/j.gr.2011.05.005]
• Kim, S.W., Santosh, M., Park, N. and Kwon, S., 2011b, Forearc serpentinite mélange from the Hongseong suture, South Korea. Gondwana Research, 20, 852-864. [https://doi.org/10.1016/j.gr.2011.01.012]
• Kim, T.S., Oh, C.W. and Kim, J.M., 2011, The Characteristic of Mangerite and Gabbro in the Odaesan Area and its Meaning to the Triassic Tectonics of Korean Peninsula. The Journal of the Petrological Society of Korea, 20, 77-98 (in Korean with English abstract). [https://doi.org/10.7854/JPSK.2011.20.2.077]
• Kiminami, K. and Imaoka, T., 2013, Spatiotemporal variations of Jurassic-Cretaceous magmatism in eastern Asia (Tan-Lu Fault to SW Japan): evidence for flat-slab subduction and slab rollback. Tera Nova, 25, 414-422. [https://doi.org/10.1111/ter.12051]
• Kimura, K., Hayasaka, Y., Shibata, T., Kawaguchi, K. and Fujiwara, H., 2019, Discovery of Paleoproterozoic 1.85 Ga granitoid bodies from the Maizuru Terrane in the Tsuwano area, Shimane Prefecture, Southwest Japan and its geologic implications. Journal of the Geological Society of Japan, 125, 153-165 (in Japanese with English abstract). [https://doi.org/10.5575/geosoc.2018.0050]
• Kimura, K., Hayasaka, Y., Yamashita, J., Shibata, T., Kawaguchi, K., Fujiwara, H. and Das, K., 2021, Antiquity and tectonic lineage of Japanese Islands: New discovery of Archean-Paleoproterozoic Complex. Earth and Planetary Science Letters, 565, 116926. [https://doi.org/10.1016/j.epsl.2021.116926]
• Koizumi, K. and Ishiwatari, A., 2006, Oceanic plateau accretion inferred from Late Paleozoic greenstones in the Jurassic Tamba accretionary complex, southwest Japan. Island Arc, 15, 58-83. [https://doi.org/10.1111/j.1440-1738.2006.00518.x]
• Koizumi, S. and Otoh, S., 2019, The Triassic plutonic and metamorphic rocks in the Saragawa-Bandojima area, Katsuyama City, Fukui Prefecture, central Japan. Katsuyama City Geopark Academic Research Project, Academic Research Reports, 18 p (in Japanese with English abstract).
• Kojima, S., Hayasaka, Y., Hiroi, Y., Matsuoka, A., Sano, H., Sugamori, Y., Suzuki, N., Takemura, S., Tsujimori, T. and Uchino, T., 2016, Pre-Cretaceous accretionary complexes. In: Moreno, T., Wallis, S., Kojima., T. and Gibbons, W. (eds.), The Geology of Japan. The Geological Society of London, 61-100. [https://doi.org/10.1144/GOJ.3]
• Komatsu, M., Ujihara, M. and Chihara, K., 1985, Pre-Tertiary basement structure in the Inner zone of Honshu and the North Fossa Magna region. Science Report of the Niigata University, Series E, Geology and Mineralogy, 5, 133-148.
• Komatsu, M., Ujihara, M., Takenouchi, K., Uda, T. and Uemura, T., 1988, Funatsu shear zone-Dextral shear zone along the margin of the Hida complex. Memorial Papers of Professor Shinji Sato, Shizuoka, Japan, 27-37.
• Lee, B.Y., Oh, C.W., Lee, S.H., Seo, J. and Yi, K., 2020, Ages and tectonic settings of the Neoproterozoic igneous rocks in the Gyeonggi Massif of the southern Korean Peninsula and the correlation with the Neoproterozoic igneous rocks in China. Lithos, 370-371, 105625. [https://doi.org/10.1016/j.lithos.2020.105625]
• Lee, S.H., Oh, C.W. and Jung, S., 2021, Jurassic Igneous Activity in the Yuseong Area on the Southern Margin of the Gyeonggi Massif, Korean Peninsula, and Its Implications for the Tectonic Evolution of Northeast Asia during the Jurassic. Minerals, 11, 466. [https://doi.org/10.3390/min11050466]
• Lee, S.R. and Cho, K., 2012, Precambrian Crustal Evolution of the Korean Peninsula. The Journal of the Petrological Society of Korea, 21, 89-112 (in Korean with English abstract). [https://doi.org/10.7854/JPSK.2012.21.2.089]
• Lee, T.H., Park, K.H. and Yi, K., 2018, Nature and evolution of the Cretaceous basins in the eastern margin of Eurasia: A case study on the Gyeongsang Basin, SE Korea. Journal of Asian Earth Sciences, 116, 19-31. [https://doi.org/10.1016/j.jseaes.2018.07.004]
• Matsuda, T. and Isozaki, Y., 1991, Well-documented travel history of Mesozoic pelagic chert in Japan: From remote ocean to subduction zone. Tectonics, 10, 475-499. [https://doi.org/10.1029/90TC02134]
• Nakae, S., 2000, Regional correlation of the Jurassic accretionary complex in the Inner Zone of Southwest Japan. The Memoirs of the Geological Society of Japan, 55, 73-98 (in Japanese with English abstract).
• Nakajima, T., Takahashi, M., Imaoka, T. and Shimura, T., 2016, Granitic rocks. In: Moreno, T., Wallis, S., Kojima, T. and Gibbons, W. (eds.), The geology of Japan. The Geological Society of London, London, 251-272. [https://doi.org/10.1144/GOJ.10]
• Nishimura, Y., 1998, Geotectonic subdivision and areal extent of the Sangun belt, Inner Zone of Southwest Japan. Journal of the Metamorphic Geology, 16, 129-140. [https://doi.org/10.1111/j.1525-1314.1998.00059.x]
• Ogasawara, M., Fukuyama, M. and Horie, K., 2016, SHRIMP U-Pb zircon dating of the Kinshozan Quartz Diorite from the Kanto Mountains, Japan: Implications for late Paleozoic granitic activity in Japanese Islands. Island Arc, 25, 28-42. [https://doi.org/10.1111/iar.12136]
• Oh, C.W., 2006, A new concept on tectonic correlation between Korea, China and Japan: Histories from the late Proterozoic to Cretaceous. Gondwana Research, 9, 47-61. [https://doi.org/10.1016/j.gr.2005.06.001]
• Oh, C.W., Kim, S.W., Choi, S.G., Zhai, M., Guo, J. and Krishnan, S., 2005, First Finding of Eclogite Facies Metamorphic Event in South Korea and Its Correlation with the Dabie‐Sulu Collision Belt in China. The Journal of Geology, 113, 226-232. [https://doi.org/10.1086/427671]
• Oh, C.W., Krishnan, S., Kim, S.W. and Kwon, Y.W., 2006, Mangerite magmatism associated with a probable Late-Permian to Triassic Hongseong-Odesan collision belt in South Korea. Gondwana Research, 9, 95-105. [https://doi.org/10.1016/j.gr.2005.06.005]
• Oh, C.W. and Kusky, T.M., 2007, The Late Permian to Triassic Hongseong-Odesan collision belt in South Korea, and its tectonic correlation with China and Japan. International Geology Review, 49, 639-657. [https://doi.org/10.2747/0020-6814.49.7.636]
• Oh, C.W., Lee, B.C., Yi, S.B. and Ryu, H.I., 2018, Correlation of Paleoproterozoic igneous and metamorphic events of the Korean Peninsula and China; Its implication to the tectonics of Northeast Asia. Precambrian Research, 326, 334-362. [https://doi.org/10.1016/j.precamres.2018.03.010]
• Osanai, Y., Kitano, I., Nakano, N., Adachi, T., Yonemura, K., Yoshimoto, A., Miyashita, Y., Komemushi, S. and Komatsu, M., 2021, LA-ICP-MS zircon U-Pb ages of the Oshima metamorphic complex from Yawatahama-Oshima island and its geotectonic correlation. Journal of the Geological Society of Japan, 127, 1-24 (in Japanese with English abstract). [https://doi.org/10.5575/geosoc.2020.0044]
• Otofuji, Y., 1996, Large tectonic movement of the Japan Arc in late Cenozoic times inferred from paleomagnetism: Review and synthesis. Island Arc, 5, 229-249. [https://doi.org/10.1111/j.1440-1738.1996.tb00029.x]
• Otoh, S. and Sasaki, M., 1998, “Asia” and the “Japanese Islands” in Paleo−Mesozoic time. Journal of the Geological Society of Japan, 50, 159-176 (in Japanese with English abstract).
• Park, J.Y., Park, S.I. and Choi, T., 2020, Microstructural and Geochronological Analyses of Mesozoic Ductile Shear Zones in the Western Gyeonggi Massif, Korea: Implications for an Orogenic Cycle in the East Asian Continental Margin. Minerals, 10, 362. [https://doi.org/10.3390/min10040362]
• Park, K.H., Kim, M.J., Yang, Y.S. and Cho, K.O., 2010, Age Distribution of the Jurassic Plutons in Korean Peninsula. The Journal of the Petrological Society of Korea, 19, 269-281 (in Korean with English abstract).
• Sakashima, T., Terada, K., Takeshita, T. and Sano, Y., 2003, Large-scale displacement along the Median Tectonic Line, Japan: evidence from SHRIMP zircon U-Pb dating of granites and gneisses from the South Kitakami and paleo-Ryoke belts. Journal of Asian Earth Sciences, 21, 1019-1039. [https://doi.org/10.1016/S1367-9120(02)00108-6]
• Sakoda, M., Kano, T., Fanning, C.M. and Sakaguchi, T., 2006, SHRIMP U‐Pb Zircon Age of the Inishi Migmatite around the Kamioka Mining Area, Hida Metamorphic Complex, Central Japan. Resource Geology, 56, 17-26. [https://doi.org/10.1111/j.1751-3928.2006.tb00264.x]
• Seo, J., Song, Y.S. and Park, K.H., 2016, SHRIMP U-Pb Age of the Early Jurassic Deformed Granites in the Aneui Quadrangle, SW Yeongnam Massif. Economic and Environmental Geology, 49, 147-153 (in Korean with English abstract). [https://doi.org/10.9719/EEG.2016.49.2.147]
• Shibata, K. and Nishimura, Y., 1989, Isotopic ages of the Sangun crystalline schists, Southwest Japan. The Memoirs of the Geological Society of Japan, 33, 317-341 (in Japanese with English abstract).
• Sohma, T. and Kunugiza, K., 1993, The formation of the Hida nappe and the tectonics of Mesozoic sediments: The tectonic evolution of the Hida region, Central Japan. Journal of the Geological Society of Japan, 42, 1-20 (in Japanese with English abstract).
• Suda, Y. and Hayasaka, Y., 2009, Genesis and evolutional processes of the Paleozoic oceanic island arc crust, Asago body of the Yakuno Ophiolite, Southwest Japan. Journal of the Geological Society of Japan, 115, 266-287 (in Japanese with English abstract). [https://doi.org/10.5575/geosoc.115.266]
• Suda, Y., Hayasaka, Y. and Kimura, K., 2014, Crustal Evolution of a Paleozoic Intra-oceanic Island-Arc-Back-Arc Basin System Constrained by the Geochemistry and Geochronology of the Yakuno Ophiolite, Southwest Japan. Journal of Geological Research, 2014, 652484. [https://doi.org/10.1155/2014/652484]
• Takahashi, Y., Cho, D.L. and Kee, W.S., 2010, Timing of mylonitization in the Funatsu Shear Zone within Hida Belt of southwest Japan: Implications for correlation with the shear zones around the Ogcheon Belt in the Korean Peninsula. Gondwana Research, 17, 102-115. [https://doi.org/10.1016/j.gr.2009.04.008]
• Takahashi, Y., Cho, D.L., Mao, J., Zhao, X. and Yi, K., 2018, SHRIMP U-Pb zircon ages of the Hida metamorphic and plutonic rocks, Japan: Implications for late Paleozoic to Mesozoic tectonics around the Korean Peninsula. Island Arc, 27, e12220. [https://doi.org/10.1111/iar.12220]
• Takehara, M. and Horie, K., 2019, U-Pb zircon geochronology of the Hida gneiss and granites in the Kamioka area, Hida Belt. Island Arc, 28, e12303. [https://doi.org/10.1111/iar.12303]
• Takeda, K., 1995, The Maana and Kurosegawa Belts in western edge of Shikoku. The 102nd Annual Meeting of The Geological Society of Japan Excursion Guidebook 31-46 (in Japanese).
• Takeuchi, M., Shibata, K., Jia, S. and Yamamoto, K., 2019, U-Pb zircon ages of granitic rocks from Kagasawa, Hida Mountains. Journal of the Geological Society of Japan, 125, 453-459 (in Japanese with English abstract). [https://doi.org/10.5575/geosoc.2019.0009]
• Tsuchiya, N., Takeda, T., Tani, K., Adachi, T., Nakano, N., Osanai, Y. and Kimura, J., 2014, Zircon U-Pb age and its geological significance of late Carboniferous and Early Cretaceous adakitic granites from eastern margin of the Abukuma Mountains, Japan. Journal of the Geological Society of Japan, 120, 37-51. [https://doi.org/10.5575/geosoc.2014.0003]
• Tsutsumi, Y., Isozaki, Y., Kitani, K. and Terabayashi, M., 2018, Western extension of the Hida belt: Triassic granitoids in northwestern foothills of Mt. Daisen, western Tottori, Japan. Annual Meeting of the Geological Society of Japan, (Abstracts), Sapporo, September 19-11, T3-O-4 (in Japanese).
• Tsutsumi, Y., Isozaki, Y. and Terabayashi, M., 2017, The most continent-sided occurrence of the Phanerozoic subduction-related orogens in SW Japan: Zircon U-Pb dating of the Mizoguchi gneiss on the western foothill of Mt. Daisen volcano in Tottori. Journal of Asian Earth Sciences, 145, 530-541. [https://doi.org/10.1016/j.jseaes.2017.06.028]
• Tsutsumi, Y., Ohtomo, Y., Horie, K., Nakamura, K. and Yokoyama, K., 2010, Granitoids with 300 Ma in the Joban coastal region, east of Abukuma Plateau, north-east Japan. Journal of the Mineralogical and Petrological Sciences, 105, 320-327. [https://doi.org/10.2465/jmps.091204]
• Tsutsumi, Y., Yokoyama, K., Horie, K., Terada, K. and Hidaka, H., 2006, SHRIMP U-Pb dating of detrital zircons in paragneiss from Oki-Dogo Island, western Japan. Journal of the Mineralogical and Petrological Sciences, 101, 289-298. [https://doi.org/10.2465/jmps.060127]
• Tsutsumi, Y., Yokoyama, K., Kasatkin, S.A. and Golozubov, V.V., 2014, Zircon U-Pb age of granitoids in the Maizuru Belt, southwest Japan and the southernmost Khanka Massif, Far East Russia. Journal of the Mineralogical and Petrological Sciences, 109, 97-102. [https://doi.org/10.2465/jmps.131017]
• Tsutsumi, Y., Yokoyama, K., Terada, K. and Sano, Y., 2000, SHRIMP U-Pb dating of zircons in the sedimentary rocks from the Akiyoshi and Suo zones, Southwest Japan. Journal of the Mineralogical and Petrological Sciences, 95, 216-227. [https://doi.org/10.2465/jmps.95.216]
• von Huene, R. and Lallemand, S., 1990, Tectonic erosion along the Japan and Peru convergent margins. Geological Society of America Bulletin, 102, 704-720. [https://doi.org/10.1130/0016-7606(1990)102<0704:TEATJA>2.3.CO;2]
• Wakita, K., 2013, Geology and tectonics of Japanese islands: A review - The key to understanding the geology of Asia. Journal of Asian Earth Sciences, 72, 75-87. [https://doi.org/10.1016/j.jseaes.2012.04.014]
• Wakita, K., Nakagawa, T., Sakata, M., Tanaka, N. and Oyama, N., 2021, Phanerozoic accretionary history of Japan and the western Pacific margin. Geological Magazine, 158, 13-29. [https://doi.org/10.1017/S0016756818000742]
• Wallis, S.R. and Okudaira, T., 2016, Paired metamorphic belts of SW Japan: the geology of the Sanbagawa and Ryoke metamorphic belts and the Median Tectonic Line. In: Moreno, T., Wallis, S., Kojima., T. and Gibbons, W. (eds.), The Geology of Japan. The Geological Society of London, 101-124. [https://doi.org/10.1144/GOJ.4]
• Wallis, S.R., Yamaoka, K., Mori, H., Ishiwatari, A., Miyazaki, K. and Ueda, H., 2020, The basement geology of Japan from A to Z. Island Arc, 29, e12339. [https://doi.org/10.1111/iar.12339]
• Williams, I.S., Cho, D.L., Kim, S.W., 2009, Geochronology, and geochemical and Nd-Sr isotopic characteristics, of Triassic plutonic rocks in the Gyeonggi Massif, South Korea: Constraints on Triassic post-collisional magmatism. Lithos, 107, 239-256. [https://doi.org/10.1016/j.lithos.2008.10.017]
• Wu, F.Y., Han, R.H., Yang, J.H., Wilde, S.A., Zhai, M.G. and Park, S.C., 2007, Initial constraints on the timing of granitic magmatism in North Korea using U-Pb zircon geochronology. Chemical Journal, 238, 232-248. [https://doi.org/10.1016/j.chemgeo.2006.11.012]
• Yamada, R., Sawada, H., Aoyama, S., Ouchi, W., Niki, S., Nagata, M., Takahashi, T. and Hirata, T., 2021, Zircon U-Pb ages and whole-rock geochemistry from the Hida granites: implications for the geotectonic history and the origin of Mesozoic granites in the Hida belt, Japan. Journal of the Mineralogical and Petrological Sciences, 116, 61-66. [https://doi.org/10.2465/jmps.201125]
• Yi, K., Cheong, C.S., Kim, J., Kim, N., Jeong, Y.J. and Cho, M., 2012, Late Paleozoic to Early Mesozoic arc-related magmatism in southeastern Korea: SHRIMP zircon geochronology and geochemistry. Lithos, 153, 129-141. [https://doi.org/10.1016/j.lithos.2012.02.007]
• Yin, A. and Nie, S., 1993, An indentation model for the north and south China collision and the development of the TanLu and Honam fault systems, eastern Asia. Tectonics, 12, 801-813. [https://doi.org/10.1029/93TC00313]
• Yoon, R., Song, Y.S. and Yi, K., 2014, SHRIMP U-Pb Zircon Ages of the Yeongju and Andong Granites, Korea and their Implications. The Journal of the Petrological Society of Korea, 23, 209-220 (in Korean with English abstract). [https://doi.org/10.7854/JPSK.2014.23.3.209]
• Zhai, M., Guo, J., Li, Z., Chen, D., Peng, P., Li, T., Hou, Q. and Fan, Q., 2007, Linking the Sulu UHP belt to the Korean Peninsula: Evidence from eclogite, Precambrian basement, and Paleozoic sedimentary basins. Gondwana Research, 12, 388-403. [https://doi.org/10.1016/j.gr.2007.02.003]
• Zhai, M.G., Zhang, Y.B., Zhang, X.H., Wu, F.Y., Peng, P., Li, Q.L., Hou, Q.L., Li, T.S. and Zhao, L., 2016, Renewed profile of the Mesozoic magmatism in Korean Peninsula: Regional correlation and broader implication for cratonic destruction in the North China Craton. Science China Earth Sciences, 59, 2355-2388. [https://doi.org/10.1007/s11430-016-0107-0]
• Zhai, M.G., Zhang, X.H., Zhang, Y.B., Wu, F.Y., Peng, P., Li, Q.L., Li, Z., Guo, J., Li, T.S., Zhao, L. and Zhou, L.G., Zhu, X., 2019, The geology of North Korea: An overview. Earth-Sciences Reviews, 194, 57-96. [https://doi.org/10.1016/j.earscirev.2019.04.025]
• Zhang, X., Takeuchi, M. and Lee, H.Y., 2018a, Tracing the origin of Southwest Japan using the Hf isotopic composition of detrital zircons from the Akiyoshi Belt. Terra Nova, 31, 11-17. [https://doi.org/10.1111/ter.12363]
• Zhang, X., Takeuchi, M., Ohkawa, M. and Matsuzawa, N., 2018b, Provenance of a Permian accretionary complex (Nishiki Group) of the Akiyoshi Belt in Southwest Japan and Paleogeographic implications. Journal of Asian Earth Sciences, 167, 130-138. [https://doi.org/10.1016/j.jseaes.2018.01.005]
• Zhang, Y.B., Wu, F.Y., Yang, J.H., Kim, J.N. and Han, R.H., 2016, Petrogenesis and geological implications of Phanerozoic granitoids at northern Korean Peninsula. Acta Petrologica Sinica, 32, 3098-3122 (in Chinese with English abstract).
• Zhang, Y.B., Zhai, M.G., Wu, F.Y., Zhang, X.H., Li, Q.L., Peng, P., Zhao, L. and Zhou, L.G., 2021, In situ zircon U– Pb dating of Jurassic granitoids in North Korea and its tectonic implications. Lithos, 398-399, 106346. [https://doi.org/10.1016/j.lithos.2021.106346]
• Zhao, X., Mao, J., Ye, H., Liu, K. and Takahashi, Y., 2013, New SHRIMP U-Pb zircon ages of granitic rocks in the Hida Belt, Japan: Implications for tectonic correlation with Jiamushi massif. Island Arc, 22, 508-521. [https://doi.org/10.1111/iar.12045]
